The Aquapanel exterior cement board system developed by Knauf Aquapanel is the ideal selection for architect and contractor. It has excellent quality, and is the best product substituting bricks, stones and other traditional building materials. It provides solid and dry base as well.
Applicable scope:
Aquapanel exterior system can be applied for renovation of various exterior walls, external elevations and other various exterior wall projects and special projects. It can resist the influence of heavy weather, such as wind, rain and snow. It can be used as the curtain wall system or frame exterior wall system.
System Features:
- Water proof for 100% (non-expansion, non-cracking and against damage)
- Dampproof and weather durability, good resistance to freezing and thawing (verified by freeze-thaw cycles)
- It can be bent
- Impact resistance
- Safety and environmental protection
- Composed of Portland cement with stable performance and high intensity
- Incombustible material
- No need of special tool, simple and convenient cutting and construction in dry method; rapid installation, shortened construction period and saved cost
- With unique Easy EdgeTM for binding, it is impact resistance and easy for installation
- Complete product dimension
- Conform to Europe Norm and International standard
System diagram and system components:

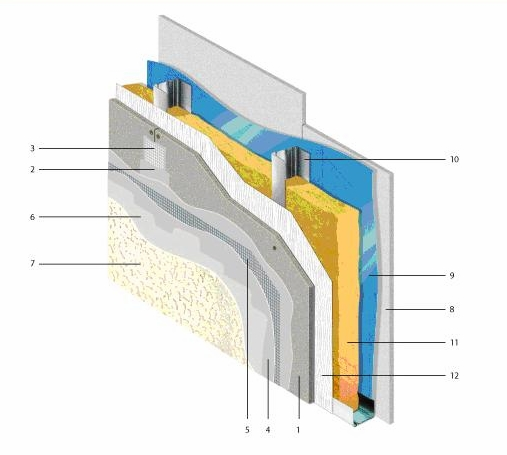

<Frame external wall system>
1. Aquapanel exterior cement board
2. Aquapanel joint filler (gray)
3. Aquapanel joint tape (10cm in width)
4. Aquapanel exterior surface used mortar
5. Aquapanel exterior reinforced mesh cloth
6. Aquapanel exterior primer
7. Aquapanel exterior synthesis of silicone resin mortar (white)
or Aquapanel exterior dispersoid mortar
8. Knauf plasterboard
9. Vapour barrier
10. Stud
11. Knauf insulation layer
12. Aquapanel waterproof membrane

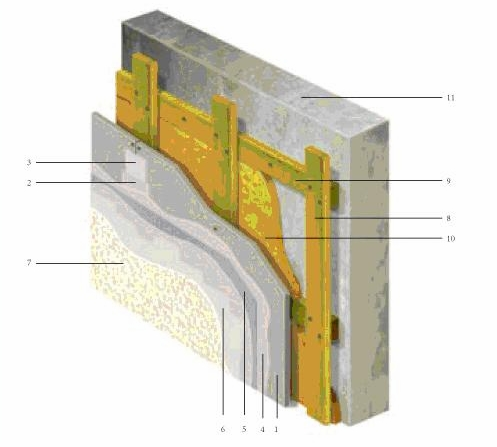

<Curtain wall system>
1. Aquapanel exterior cement board
2. Aquapanel joint filler (grey)
3. Aquapanel joint tape (10cm in width)
4. Aquapanel exterior surface used mortar
5. Aquapanel exterior reinforced mesh cloth
6. Aquapanel exterior primer
7. Aquapanel exterior synthesis of silicone resin mortar (white)
or Aquapanel exterior dispersoid mortar
8. Vertical stud
9. Horizontal stud
10. Knauf insulation layer
11. Concrete base
